| BASIC INFO |
| Model No. |

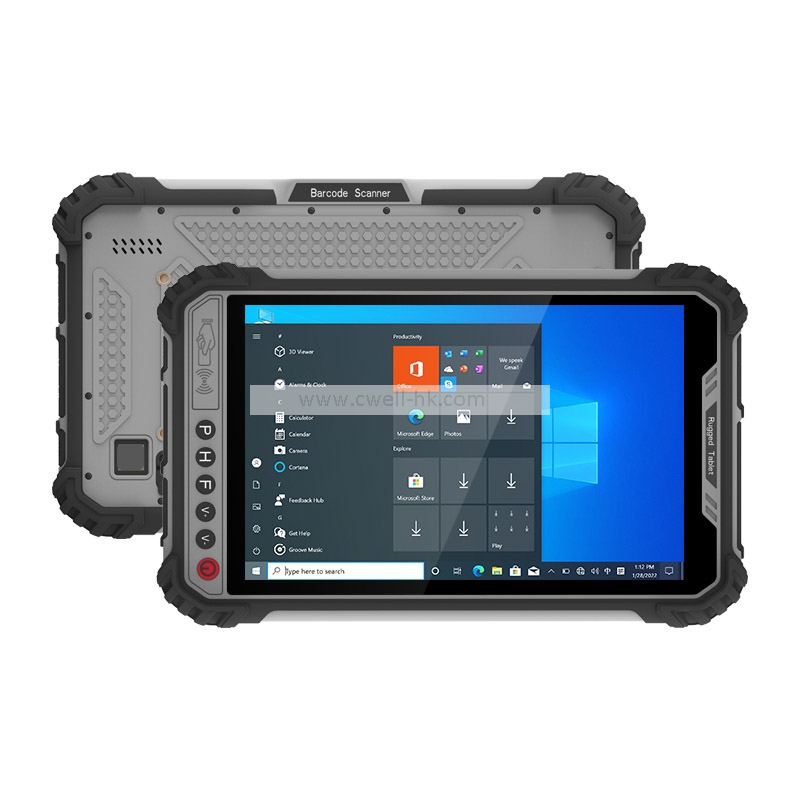

WinPad
W801 |
| Operating system |
Windows
10 Home (Windows 10 pro/IOT version optional) |
| Dimension |
234*144*16.8mm |
| Weight |
800g |
| Material |
ABS
+ PU |
| Color |
Dark
gray |
| Language |
Multi-language |
| HARDWARE |
| Display |
8.0
inch IPS G+G capacitive screen, 1920*1200px, 450 nits |
| Processor |
Intel
I5-8200Y dual-core, up to 1.3GHz |
| RAM |
8GB
RAM |
| ROM |
256GB
ROM, support TF card extension up to 1TB maximally |
| Camera |
Double
cameras: 13MP rear camera, 5MP front camera |
| Battery |
Built-in 7.6V/5000mAh lithium polymer battery |
| Sensor |
Gravity
sensor, light sensor |
| Speaker |
*1,
8Ω, 1.5W |
| Mic |
*1,
sensitivity: -32±2d, output impedance: 2.2kΩ |
| Buttons |
Power
Buttons, Volume+/-, P key, F key, H key |
| NETWORK & CONNECTIVITY |
| Bands |
2G:
GSM 850/900/1800/1900MHz |
| 3G: WCDMA B1/B2/B4/B5/B8 |
| 4G: FDD-LTE B1/B2/B3/B4/B5/B7/B8/B28, TDD-LTE
B40 |
| WiFi |
IEEE
802.11a/b/g/n/ac, support 2.4G&5G dual-band WiFi |
| BT |
V4.2 |
| NFC |
Front
NFC, ISO/IEC14443, ISO/IEC15693, MIFARE, Felica, reading distance:3-5cm |
| GNSS |
Support
GPS, BDS, GLONASS |
| I/O INTERFACES |
| USB Type-A 3.0 |
*1 |
| ∮4.0mm DC-IN port |
*1 |
| HD-MI Type A |
*1 |
| 3.5mm earphone port |
*1 |
| RS232 |
Support |
| RJ45 port |
*1,
10/100/1000M |
| 16PIN Pogo pin(Back) |
USB2.0*1+UART
TTL*1 |
| 8PIN Pogo pin (Bottom) |
USB2.0*1+UART
TTL*1+Charging |
| Multimedia |
| Image format |
BMP,
JPG, GIF, PNG |
| Video format |
MEPG
1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG. (UP TO 1080P) |
| Audio format |
MP3,
WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS (need license) |
| OPTIONAL |
Fingerprint Module
AFM60 |
Fingerprint
capacity: 500 |
| Recognition time: <0.45 seconds |
| Identification method: 1:N recognition or 1:1
authentication |
| 2D barcode scanner |
N3680 |
High-precision GPS
TAU1201 |
0.25-1
meter positioning, support BDS, GPS, GLONASS;
Capture Sensitivity: -158 dBm; Cold Start Time: 24 seconds, Hot Start Time:
1 second |
| UHF RFID |
Built-in
(European/American Standard): Output power: 18-26 dBm; receiving sensitivity
< -70dBm; card reading distance: 2-3 meters |
| External (European/American standard): Output
power: 18-26 dBm; receiving sensitivity < -70dBm; card reading distance:
4-5 meters |
| RELIABILITY |
| Waterproof |
IP65,
MIL-STD-810G （IP67 optional) |
| Drop-proof |
1.2m |
| Temperature range |
Operating:
-20℃~60℃ Storage: -25℃~80℃ |
| ACCESSORIES |
| Power adaptor (12V/3A) |
*1 |
| Charging cable |
*1 |
| Hand strap |
*1 |
| Protective film |
*1 |
