WinPad W122J-Windows Tablet PC-Tablet PC/Laptop

WinPad W122J

  • WinPad W122J
  • WinPad W122J
  • WinPad W122J
  • WinPad W122J
  • WinPad W122J
  • Product Scores：
  • Model No.：WinPad W122J
  • Standard Price：$ 629.5~$ 686.8/piece (Notice: the detailed price based on order quantity)

Price down noticeclose ×

share:

Features & Specification

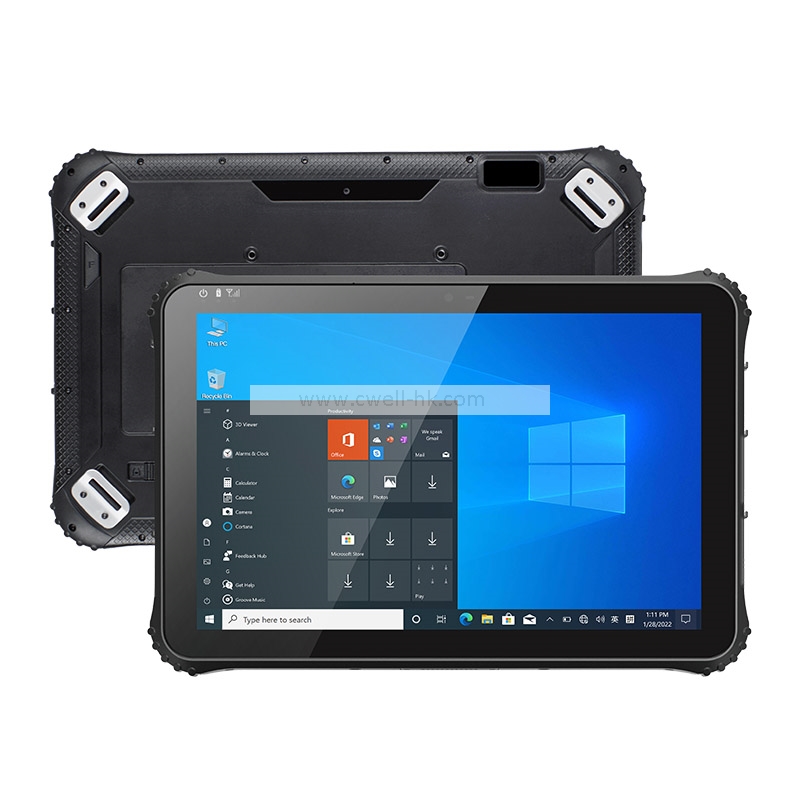

W122J 12 Inch 128GB SSD Ethernet/RS232 Ports Rugged Tablet Windows 10/11 System PC
1) 12-inch 650nit High-Brightness Touch Screen
2) Intel N5100 Quad Core Processor
3) IP65 Waterproof /1.22 Meters Drop-Proof
4) 8GB DDR+128GB SSD
5) Hot Swap Dual Batteries Design
6) Support GPS/Beidou/GLONASS
7) RS232/485/RJ45/USB Type-A Interfaces
8) NFC/5G NR/2D Scanning Modules Optional

BASIC INFO
Model No. WinPad W122J
Operating System Windows 11 Pro
Dimension 319.6*216*24.3mm
Weight 1620g (include battery)
Color Black
Language Multi-language
HARDWARE
Display 12.2 inch 16:10 Corning Gorilla IPS capacitive screen, 1920*1200px, 650cd/m2
Processor Intel JASPER LAKE N5100 quad core, 2.8GHz; GPU: Intel HD Graphics Gen 11 LP
RAM 8GB RAM
ROM 128GB ROM, support Micro SD card up to 512GB maximally
Camera Double cameras: rear 8.0MP AF with flashlight, front 5.0MP
Battery Removable 7.4V/6300mAh+ built-in 7.4V/1000mAh Li-Polymer battery
G-sensor Support
Speaker Embedded 8Ω/1W waterproof speaker*2
LED Indicator RGB
Key Power key*1, Volume key+/-*1, Home key*1, P1/P2/F custom key*3
NETWORK & CONNECTIVITY
Network Bands 2G GSM 900/1800MHz
3G WCDMA 900/2100MHz
4G FDD-LTE B1/B3/B7/B8/B20/B28A
WiFi IEEE 802.11a/b/g/n/ac, support 2.4G/5.8GHz dual band WiFi
BT V5.0(BLE), transmission distance: up to 10 meters
GNSS Support GPS/Beidou/GLONASS
I/O INTERFACES
TF card slot *1
SIM slot *1
Reset Hole *1
USB Type-A *3 (USB2.0*1, USB3.0*2)
USB Type-C 3.0 *1
3.5mm audio jack *1
DC-IN *1
Mini HD-MI 1.4a  *1
RJ45 Port *1 (10/100/1000Mbps)
RS232 *1
RS485 *1
12pin Pogo Pin *1
OPTIONAL FEATURES
NFC Optional （NXP300）
2D barcode scanning Optional (Honeywell N3680)
5G Module Optional
RELIABILITY
Waterproof IP65/MIL-STD-810G
Drop-proof 1.22m drop
Temperature range Operating: '-20 °C to 60 °C, storage: '-30 °C to 70 °C
Humidity range 95% Non-Condensing
ACCESSORIES
Power Adaptor (19V/3.42A) *1
Hand-strap *1
Charging dock Optional
Back-strap Optional
Keyboard Optional
Desktop Stand Optional
Vehicle Mount Optional
Stylus Optional
