| BASIC INFO |
| Model No. |

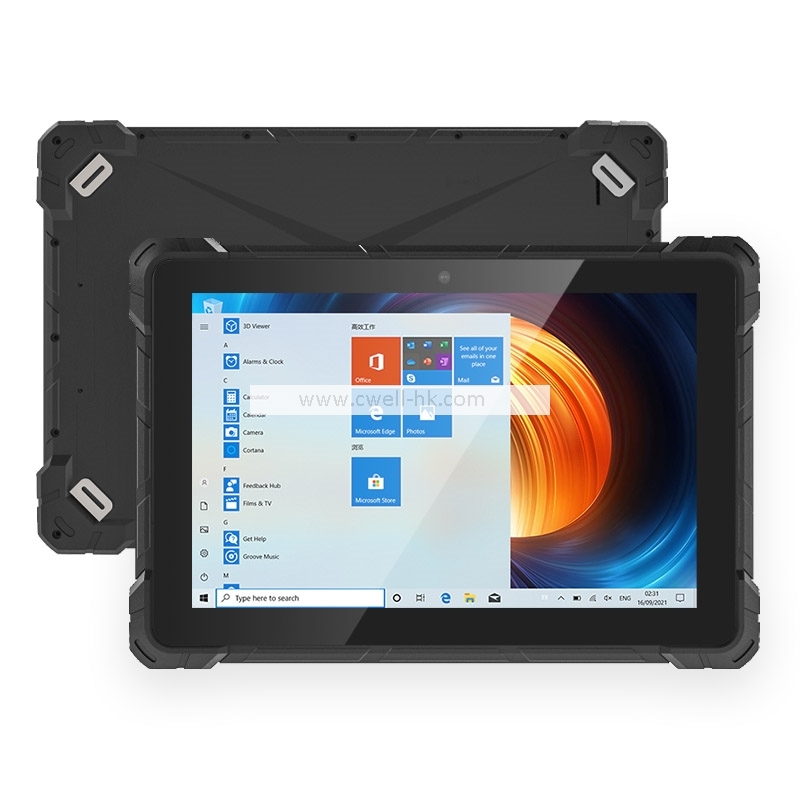

WinPad
W108 |
| Operating system |
Windows
10 Pro |
| Dimension |
280*184*26.5mm |
| Weight |
1150g |
| Material |
TPU+PC |
| Color |
Black
(Can be customized if QTY>1000) |
| Language |
Chinese
Simplified, English, Russian, German, French, Portuguese, Spanish, Arabic,
the default language is English (Note: Language changes as time zone changes) |
| HARDWARE |
| Display |
Standard:
10.1 inch G+G multi-touch IPS+HD screen, 1280*800px, 300 nits |
| Optional: 1920*1200px,1000nits (MOQ 500pcs) |
| CPU |
Intel
Gemini lake N4120 quad core, 1.1GHz ~ 2.6GHz |
| GPU |
Intel
UHD 600 Graphics |
| RAM |
8GB
RAM LPDDR4 |
| ROM |
128GB
eMMC(Mini PCI-e optional), support TF card up to 512GB maximally |
| Camera |
Double
cameras: rear 5MP/front 2MP |
| Battery |
Built-in
rechargeable 7.6V/5000mAh Li-polymer battery |
| G-sensor |
Support |
| Speaker |
Waterproof
8Ω/1W*2pcs |
| Mic |
Support |
| Keys |
Power
key*1，Volume key*1, Hotkey *1, Forced outage*1 |
| NETWORK & CONNECTIVITY |
| WiFi |
IEEE
802.11ac/b/g/n, support 2.4GHz & 5GHz dual-band WiFi |
| Ethernet network |
RJ-45,
1000Mbps |
| BT |
V4.2 |
| I/O INTERFACES |
| TF card slot |
*1 |
| USB 3.0 port |
*2 |
| USB Type-C 3.1 port |
*1 |
| Micro HD-MI 2.0 port |
*1
(support output 4K@60 FPS video) |
| 3.5mm audio jack |
*1 |
| RS232 (DB9) |
*1 |
| RJ45 Port |
*1 |
| DC-IN |
*1 |
| OPTIONAL FEATURES |
| 4G Module |
Optional |
| Fingerprint unlock |
Optional |
| 2D Barcode scanning |
Optional |
| NFC |
Optional |
| GNSS |
Optional |
| RELIABILITY |
| TPM 2.0 Data Encryption |
Support |
| Waterproof |
IP67 |
| Drop-proof |
MIL-STD-810G |
| Temperature range |
Operating:
-10℃~ 55℃ Storage:-20℃~70℃ |
| Humidity range |
Operating:
35% ~ 80% relative humidity, Non-condensing
Storage: 20% ~ 93% relative humidity, Non-condensing |
| ACCESSORIES |
| 12V/3A Power adapter |
*1 |
| User Manual |
*1 |
| Handle strap |
Optional |
| Extension Docking |
Optional
(USB2.0; Power charging; RJ45; RS232) |
| Vehicle Bracket |
Optional
(USB2.0; Power charging; RJ45; RS232) |
