WinPad V10J-Windows Tablet PC-Tablet PC/Laptop

WinPad V10J

  • WinPad V10J
  • WinPad V10J
  • WinPad V10J
  • WinPad V10J
  • WinPad V10J
  • Product Scores:
  • Model No.:WinPad V10J
  • Standard Price:$ 332.9~$ 374.8/piece (Notice: the detailed price based on order quantity)

Price down noticeclose ×

share:

Features & Specification

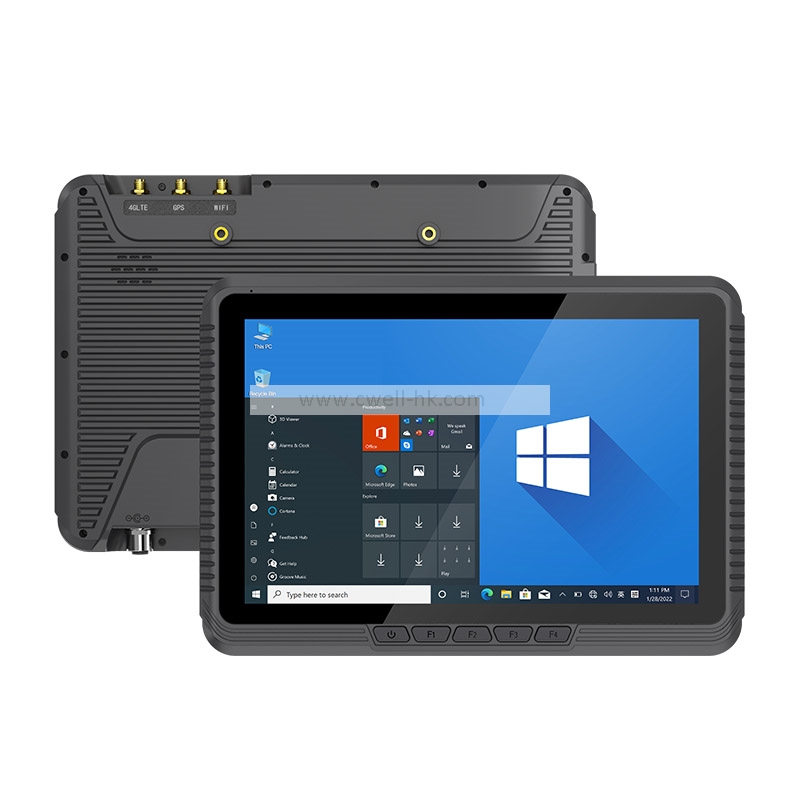

WinPad V10J 10.1 Inch High Precision Positioning Smart Windows Rugged Vehicle Tablet
1) Windows Operation System
2) Intel N5100 Quad Core Processor
3) 8GB DDR+128GB EMMC
4) 10.1 Inch Tempered Glass Touch Screen
5) Neo-7 Module GNSS Navigation
6) RJ45/USB-A/RS232/RS485 Ports
7) IP65 Waterproof
8) Direct Car Charging
9) 4G Module/ NFC Optional

BASIC INFO
Model No. WinPad V10J
Operating System Windows 11 PRO
Dimension 264.5*184.1*23mm
Weight 834g (include battery)
Color Black
Language Multi-language
HARDWARE
Display 10.1 inch 16:10 tempered glass IPS capacitive screen, 1280*800px, 700cd/m2
Processor Intel JASPER LAKE N5100 quad core, 2.8GHz; GPU: Intel HD Graphics Gen 11 LP
RAM 8GB RAM
ROM 128GB ROM (EMMC), support Micro SD card up to 512GB maximally
Speaker Embedded 8Ω/1.5W waterproof speaker
LED Indicator RGB
Key Power key*1, Volume key+/-*1, custom key*4
NETWORK & CONNECTIVITY
WiFi IEEE 802.11a/b/g/n/ac, support 2.4G/5.8GHz dual band WiFi
BT V5.0 (BLE), transmission distance: up to 10 meters
GNSS Built-in Neo-7 module, support GPS/Beidou/GLONASS
I/O INTERFACES
SIM slot *1
USB Type-A 3.0 *1
DC-IN *1
RJ45 Port *1 (10/100/1000Mbps)
RS232 *1
RS485 *1
OPTIONAL FEATURES
Battery Optional (7.4V/1000mAh Li-Polymer battery)
4G Module Optional
NFC Optional (NXP300)
RELIABILITY
Waterproof IP65
Temperature range Operating: '-20 °C to 60 °C, storage: '-30 °C to 70 °C
Humidity range 95% Non-Condensing
ACCESSORIES
WiFi rod antenna *1
GPS rod antenna *1
Power adaptor cable *1
Power adaptor Optional
Car charger Optional
Wide voltage module Optional
VESA Optional
