| BASIC
INFO |
| Model No. |
UTAB
Y100 |
| Product Name |
10.1

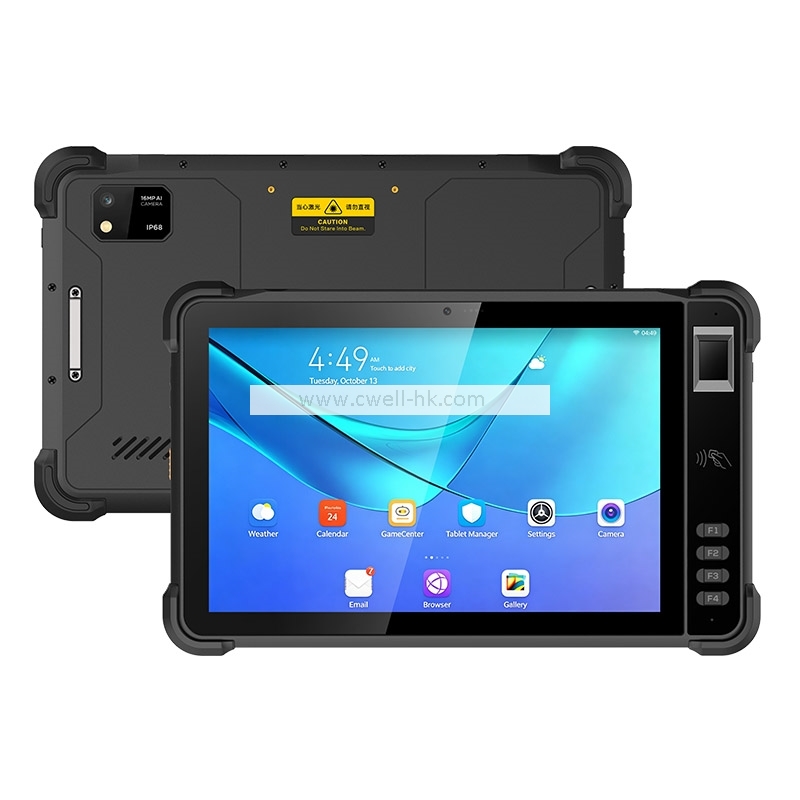

Inch IP67 Rugged Android 13 Tablet PC with 4G Optional UHF RFID and Barcode
Scanner |
| Dimension |
290.6*182.5*18.5mm |
| Net Weight |
969g |
| Shell Material |
Plastic |
| Operation System |
Android
13 |
| Languages |
Multi-language |
| Colors |
Black |
| HARDWARE |
| Screen |
10.1
inch IPS capacitive touch screen, 1280*800px (1920*1200px optional) |
| Processor |
Mediatek
MT6789 Helio G99 Octa Core, 2.2GHz; GPU:Mali-G57 MC2, 2133MHz |
| RAM |
6GB
RAM (8GB RAM optional) |
| ROM |
128GB
ROM (256GB ROM optional)), supports TF card extension up to 256GB maximally |
| Camera |
Double
cameras: 5MP front +16MP AF rear camera with LED flashlight |
| Battery |
Built in
10000mAh li-polymer battery, support 33W PD fast charging |
| Sensors |
Acceleration
sesor, light sensor, proximity sensor, gyro sensor |
| Speaker |
4W
speaker*1 |
| Microphone |
Dual
microphones with noise cancellation |
| Keys |
Left:
Volume +/ , Scan key; Right: Power key; Front: 4 custom keys |
| LED Indicator |
RGB*2 |
| NETWORK
& CONNECTIVITY |
| Network Bands |
2G:
GSM 850/900/1800/1900MHz |
| 3G: WCDMA 850/900/1900/2100MHz |
| 4G: FDD-LTE B1/B2/B3/B5/B7/B8/B20/B25/B26/B28;
TDD-LTE: B34/B38/B39/B40/B41 |
| WIFI |
IEEE
802.11a/b/g/n/ac, support 2.4GHz / 5GHz dual band wifi |
| BT |
V5.0 |
| GNSS |
Support
GPS/Galileo/Glonass/Beidou |
| I/O
INTERFACES |
| SIM Slot |
*2
(Nano+Nano or Nano+TF) |
| USB Type A 2.0 |
*1 |
| USB Type C 2.0 |
*1 |
| Pogo Pin |
*1 |
| Serial Port |
*1 |
| P-SAM Card Slot |
Optional |
| OPTIONAL
FUNCTIONS |
| NFC |
Optional:
13.56 MHz, ISO14443A/B, ISO15693, etc.; read distance 1 3cm |
| 1D/2D Barcode Scanner |
Optional |
| UHF RFID Module |
Optional:
Impinj E710, 860 960 MHz, 4dBi circular antenna, up to 15m read range, 1500+
tags/10s |
| HF RFID Module |
Optional:
13.56 MHz, ISO14443 / ISO15693 |
| LF RFID Module |
Optional:
125 kHz / 134 kHz, ISO 11784/11785 |
| ID Card Module |
Optional:
Chinese 2nd gen ID card, residence permits, permanent resident cards |
| Fingerprint Module |
Optional:
508 DPI, 256*360px, GA/T 1011 2012 compliant |
| RELIABILITY |
| Waterproof |
IP67 |
| Drop proof |
Up
to 1m drop |
| Temperature Range |
Operating:
-20℃ to 55℃; Storage: -40℃ to 70℃ |
| Electrostatic Discharge |
±15KV
(air discharge), ±8KV (contact discharge) |
| Humidity |
0 95%
non condensing |
| STANDARD
ACCESSORIES |
| Power Adaptor(11V/3A) |
*1 |
| USB Cable |
*1 |
| Screen Protector |
*1 |
| Hand Strap |
*1 |
| User Manual |
*1 |
