BASIC INFO |
Model No. |

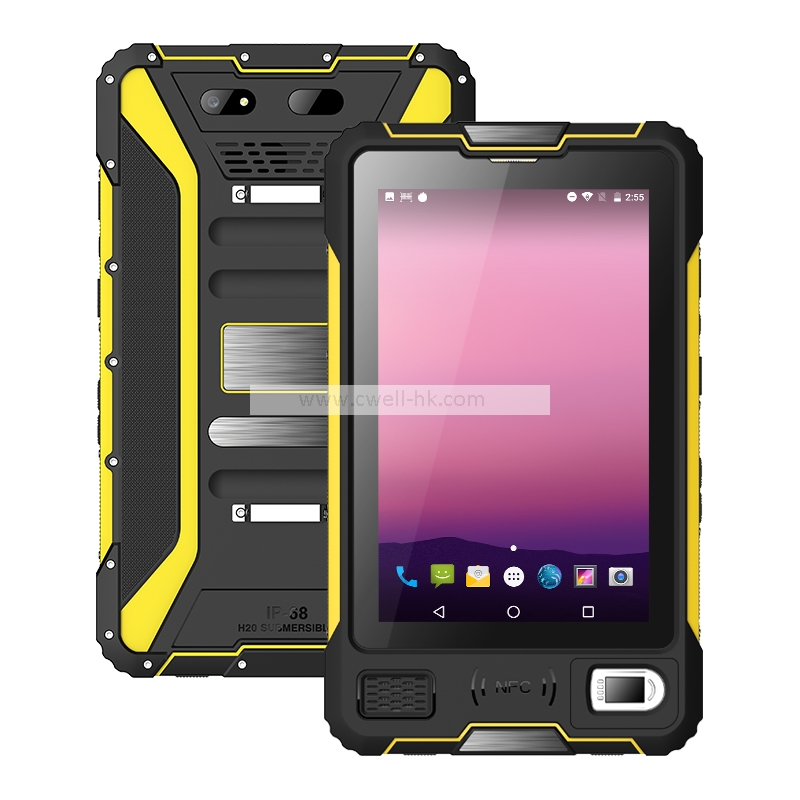

UNIWA
V810 |
Operating system |
Android
12 |
Dimension |
254*152*21.5mm |
Weight |
820g
(with battery) |
Material |
ABS/PC |
Color |
Black,
yellow |
Language |
Multi-languages |
HARDWARE |
Display |
8.0
inch dragontrail IPS capacitive touch screen, 1280*800px (1000 nit screen
optional) |
Processor |
MT6765
Helio P35 octa core, up to 2.3GHz; GPU: PowerVR Rogue GE8320 |
RAM |
4GB RAM |
ROM |
64GB ROM,
support TF card up to 128GB maximally |
Camera |
Double
cameras, front camera 5MP, Rear camera 13MP with flashlight |
Battery |
Built-in
3.85V/8000mAh Li-Po battery |
Sensor |
3D
accelerometer, E-compass, Proximity sensor, Light sensor |
Speaker |
2030
speaker |
Buttons |
Vol+/-, SCAN
button, PTT button, Power on/off,2 custom buttons |
NETWORK & CONNECTIVITY |
Band |
2G:
GSM 850/900/1800/1900MHz |
3G: WCDMA 850/900/1700/1900/2100MHz, TD-SCDMA
B34/39 |
4G: FDD-LTE
B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B, TDD-LTE B34/38/39/40/41 |
WiFi |
IEEE802.11 a/b/g/n/ac,
support 2.4GHz/5.8GHz dual band WiFi |
BT |
V5.0 |
GNSS |
Support
GPS, BDS, GLONASS |
I/O INTERFACES |
SIM Slots |
*2
or SIM+TF card |
USB Type-C Port |
*1 |
5V DC-IN |
*1 |
3.5mm audio jack |
*1 |
Pogo Pin |
*1 |
FEATURES |
NFC |
Support, NXP 557 chip, 13.56MHz |
Fast Charging |
18W
fast charging |
OTG Function |
Support |
OPTIONS |
HF RFID Reader |
Optional,
840-960MHz, group reading speed >50PCS/sec, distance≤3M |
Barcode scanning |
Optional,
Zebra 4710, Honeywell 5703 or CM30 |
Fingerprint reader |
Optional,
Small fingerprint sensor or industrial fingerprint |
RELIABILITY |
Waterproof |
IP68 |
Temperature |
Operating:
-10°C~50°C, Storage: -20℃~70℃ |
Humidity |
5%RH-95%RH,
non-condensing |
Drop-proof |
MIL-STD-810G,
1.5m drops |
Rolling Test |
1000-time
0.5m rolling test |
ACCESSORIES |
USB Cable |
*1 |
Charger |
*1 |
User manual |
*1 |
Hand Strap |
Optional |
Charging dock |
Optional |
