| BASIC INFO |
| Model No. |

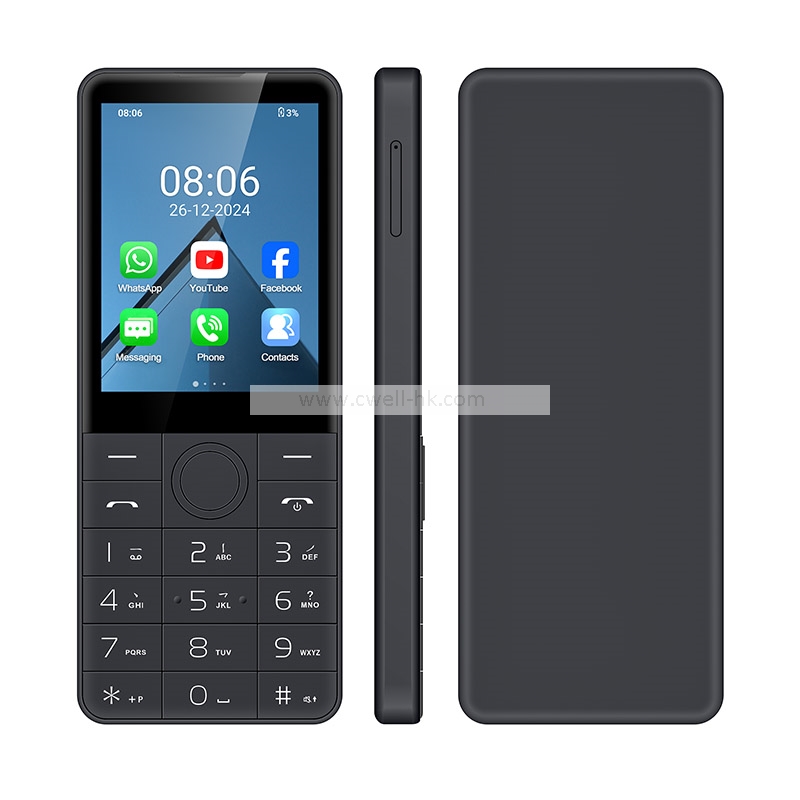

DOOV
R77 |
| Operating System |
Android
13 |
| Dimension |
133.2*54.2*9.5mm |
| Weight |
113g
(including battery) |
| Material |
Metal+plastic |
| Color |
Gey,
white |
| Language |
Multi-language |
| HARDWARE |
| Screen |
2.8
inch high definition IPS capacitive touch screen, 640*480px |
| Processor |
Mediatek
MT6762 octa core, up to 2.0GHz; GPU:
IMG GE8320, 650MHz |
| RAM |
3GB
or 4GB RAM |
| ROM |
32GB
or 64GB ROM, support TF extension up to 128GB maximally |
| Camera |
N/A, Optional for OEM order (2MP front+5MP AF
back with flashlight) |
| Speaker |
1511
K-class box speaker, 1W |
| Keys |
21
Keys |
| Sensor |
Gravity
sensor |
| Battery |
Built-in
2100mAh li-polymer battery |
| NETWORK
& CONNECTIVITY |
| Network Bands |
2G:
GSM 900/1800MHz |
| 3G: WCDMA 850/900/2100MHz |
| 4G: FDD-LTE B1/B3/B5/B7/B8/B28A/B; TDD-LTE B38/B39/B41 |
| WiFi |
IEEE
802 a/b/g/n/ac, support 2.4GHz/5GHz dual-band WiFi |
| BT |
V4.1 |
| GNSS |
Support
GPS/A-GPS/Beidou |
| I/O
INTERFACES |
| SIM Slots |
*2
(Nano+Nano or Nano+TF) |
| USB Type-C Port |
*1 |
| STANDARD
ACCESSORIES |
| Power Adaptor (5V/1A) |
*1 |
| USB cable |
*1 |
| TPU case |
*1 |
| Eject Pin |
*1 |
| User manual |
*1 |
